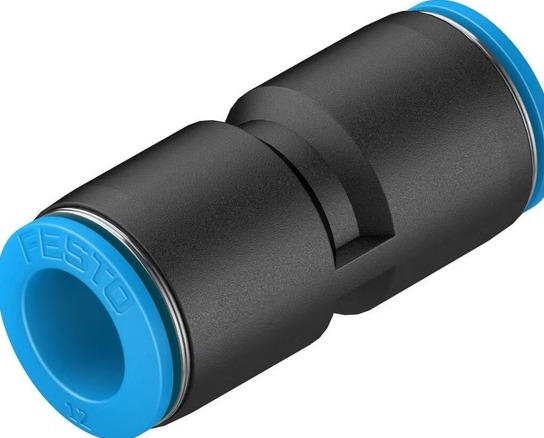

رابط پنوماتیکی QS-6 فستو

Name: رابط پنوماتیکی QS-6 فستو
Brand: FESTO
SKU: 16053
Price: 4252420.00 IRR
Availability: InStock

ویژگیهای محصول

425,242 تومان

تعداد:

نشان

نشان کردن

مقایسه

تخفیف

گزارش تخلف

پیکاتک؛ خریدی امن، با پشتیبانی و ضمانت بازگشت وجه

SizeStandard
Nominal width4.3 mm
Mounting positionAny
DesignStraight design
Pack size10
Structural designPush-pull principle
Operating pressure for entire temperature range-0.095 MPa ... 0.6 MPa
Operating pressure for entire temperature range-0.95 bar ... 6 bar
Operating pressure for entire temperature range-13.775 psi ... 87 psi
Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa
Temperature-dependent operating pressure-0.95 bar ... 14 bar
Temperature-dependent operating pressure-13.775 psi ... 203 psi
Information on operating pressureWater: max. 0.6 MPa at max. 50 °C
Operating mediumCompressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Information on operating and pilot mediaOperation with oil lubrication possible
Corrosion resistance class (CRC)1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
Ambient temperature-10 °C ... 80 °C
Product weight6.5 g
Pneumatic connection 1For pneumatic tubing outside diameter 6 mm
Pneumatic connection 2for pneumatic tubing outside diameter 6 mm
Releasing ring colorBlue
Note on materialsRoHS-compliant
Housing materialPBT
Releasing ring materialPOM
Material of tubing sealNBR
Material of tube retaining clawHigh-alloy stainless steel

مشخصات محصول

مشخصات عمومی
وضعیت تخفیف	تخفیف دارد
کشور سازنده	آلمان
وضیعت محصول	نو
اصالت جنس	اصلی
گارانتی	هیجده ماهه
مرجوعی	ندارد
روش های ارسال	بصورت پسکرایه
مشخصات فنی فیتینگ و اتصالات پنوماتیک
مدل و سازنده	رابط پنوماتیکی QS-6 فستو
نوع اتصال	فشاری
نوع فیتینگ	رابط
سایز	شلنگ 6
فشار کاری (بار)	14
جنس	برنجی (روکش مقاوم)

توضیحات

SizeStandard
Nominal width4.3 mm
Mounting positionAny
DesignStraight design
Pack size10
Structural designPush-pull principle
Operating pressure for entire temperature range-0.095 MPa ... 0.6 MPa
Operating pressure for entire temperature range-0.95 bar ... 6 bar
Operating pressure for entire temperature range-13.775 psi ... 87 psi
Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa
Temperature-dependent operating pressure-0.95 bar ... 14 bar
Temperature-dependent operating pressure-13.775 psi ... 203 psi
Information on operating pressureWater: max. 0.6 MPa at max. 50 °C
Operating mediumCompressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Information on operating and pilot mediaOperation with oil lubrication possible
Corrosion resistance class (CRC)1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
Ambient temperature-10 °C ... 80 °C
Product weight6.5 g
Pneumatic connection 1For pneumatic tubing outside diameter 6 mm
Pneumatic connection 2for pneumatic tubing outside diameter 6 mm
Releasing ring colorBlue
Note on materialsRoHS-compliant
Housing materialPBT
Releasing ring materialPOM
Material of tubing sealNBR
Material of tube retaining clawHigh-alloy stainless steel
