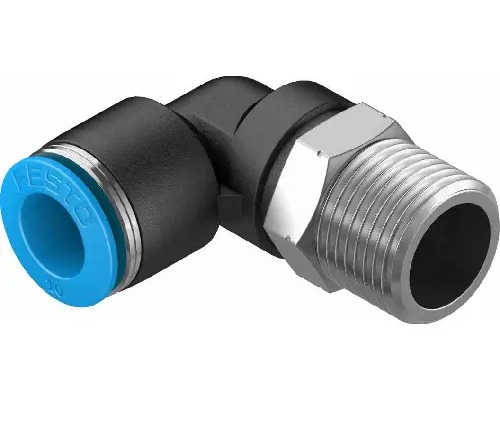

اتصال زانویی پنوماتیک فستو QSL-1/2-12-20

ویژگیهای محصول

وضیعت محصول : نو
اصالت جنس : اصلی

790,000 تومان

تعداد:

نشان کردن

مقایسه

گزارش تخلف

پیکاتک؛ خریدی امن، با پشتیبانی و ضمانت بازگشت وجه

Pneumatic connection, port 1

Male thread R1/2

Pneumatic connection, port 2

For tubing outer diameter of 12 mm

Temperature-dependent operating pressure

-0.95 bar - 14 bar

Ambient temperature

-10 °C - 80 °C

Nominal size

10.3 mm

SizeStandard
Nominal size10.3 mm
Type of seal on screwed plugCoating
Mounting positionoptional
DesignL-shape
Size of pack20
DesignPush-pull principle
Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa
Operating pressure complete temperature range-0.95 bar ... 6 bar
Operating pressure complete temperature range-13.775 psi ... 87 psi
Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa
Temperature-dependent operating pressure-0.95 bar ... 14 bar
Temperature-dependent operating pressure-13.775 psi ... 203 psi
Note on operating pressureWater: max. 0.6 MPa at max. 50°C
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
Ambient temperature-10 °C ... 80 °C
Product weight61 g
Type of mountingExternal hexagon, size 21 mm
Pneumatic connection, port 1Male thread R1/2
Pneumatic connection, port 2For tubing outer diameter of 12 mm
Colour of release ringBlue
Material screwed plugNickel-plated brass
Note on materialsRoHS-compliant
Material housingPBT
Material release ringPOM
Material tubing sealNBR
Material tubing clamp componentHigh-alloy stainless steel

مشخصات محصول

مشخصات عمومی
وضیعت محصول	نو
اصالت جنس	اصلی
گارانتی	هیجده ماهه
مرجوعی	ندارد
مشخصات فنی قطعات متفرقه
مدل و سازنده	فستو QSL-1/2-12-20

توضیحات

Pneumatic connection, port 1

Male thread R1/2

Pneumatic connection, port 2

For tubing outer diameter of 12 mm

Temperature-dependent operating pressure

-0.95 bar - 14 bar

Ambient temperature

-10 °C - 80 °C

Nominal size

10.3 mm

SizeStandard
Nominal size10.3 mm
Type of seal on screwed plugCoating
Mounting positionoptional
DesignL-shape
Size of pack20
DesignPush-pull principle
Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa
Operating pressure complete temperature range-0.95 bar ... 6 bar
Operating pressure complete temperature range-13.775 psi ... 87 psi
Temperature-dependent operating pressure-0.095 MPa ... 1.4 MPa
Temperature-dependent operating pressure-0.95 bar ... 14 bar
Temperature-dependent operating pressure-13.775 psi ... 203 psi
Note on operating pressureWater: max. 0.6 MPa at max. 50°C
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
Ambient temperature-10 °C ... 80 °C
Product weight61 g
Type of mountingExternal hexagon, size 21 mm
Pneumatic connection, port 1Male thread R1/2
Pneumatic connection, port 2For tubing outer diameter of 12 mm
Colour of release ringBlue
Material screwed plugNickel-plated brass
Note on materialsRoHS-compliant
Material housingPBT
Material release ringPOM
Material tubing sealNBR
Material tubing clamp componentHigh-alloy stainless steel
