پاورمتر هارمونیک کلمپی دیجیتال یونیتی UNI-T UT243

Professional clamp multimeter with harmonic analysis UNI-T UT243

Safety Rating
CAT III 600V
CAT IV 300V

:Certifications
C
EN:61010-1
EN:61326-1
EN:61010-2-032

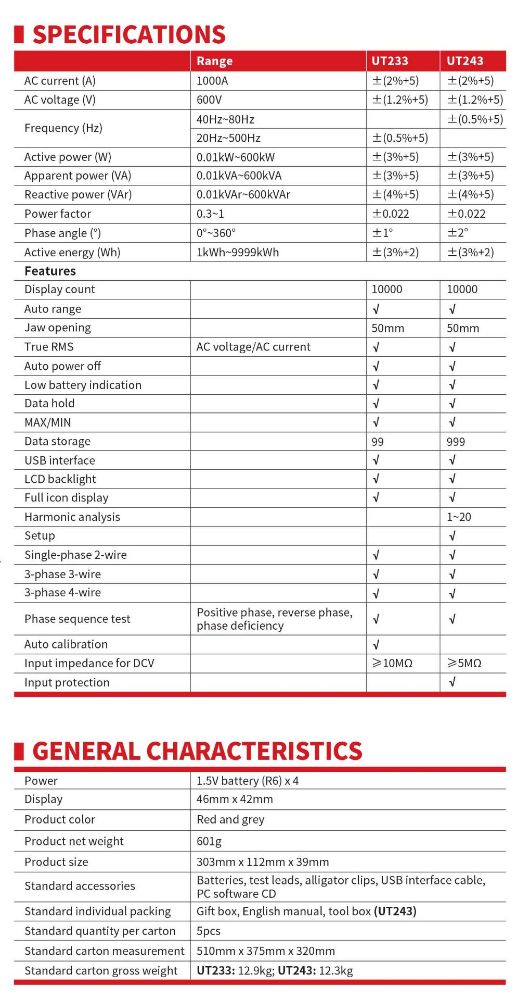

:Specifications
AC Current     50A/250A/1000A    ±(2%+5)
AC Voltage     150V/300V/600V    ±(1.2%+5)
Frequency     50Hz~60Hz
Active Power     0.01KW-600KW    ±(3%+5)
Apparent Power     0.01KVAr-600KVAr    ±(4%+5)
Reactive Power     0.01KVA-600KVA    ±(3%+5)
Power Factor    0.3~1    ±(1%+2)
Phase Angle     0° ~ 360°    ±1°
Active Energy     1~9999KWh    ±(3%+5)

:Features
Display Count        9999
Auto Range
Jaw Capacity        50m
True RMS
Auto Power Off
Low Battery Indication
Data Hold
MAX/MIN
Data Logging        999
USB Interface
LCD Backlight
Full Icon Display
Single-Phrase 2-Wires
3-Phrase 3-Wires
3-Phrase 4-Wires
Phase Sequence Test
Harmonic Analysis        1~20
Setup
Input Protection
Input Impedance for DCV    Around 5MOhm

:General Characteristic
Power    1.5V Batteries(LR6)×4
LCD Size    46mm X 42mm
Product Colour    Red and Grey
Product Net Weight    601g
Product Size    303mm X 112mm X 39mm
Standard Accessories    Test Lead, Batteries, Alligator Clips, USB Interface Cable, Tool Box, PC Software CD, Gift Box, English Manual

Manufacturer: UNI-TREND
